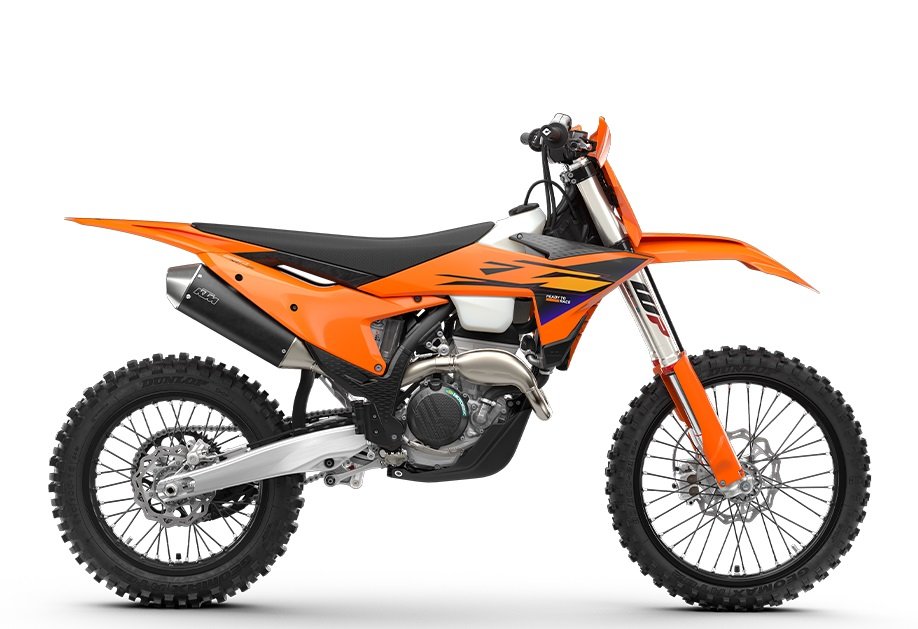

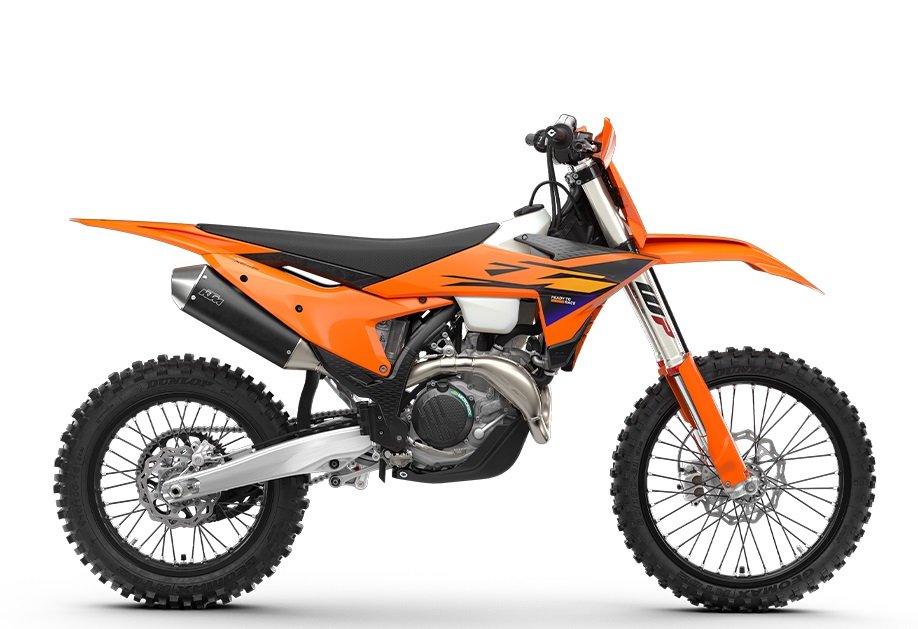

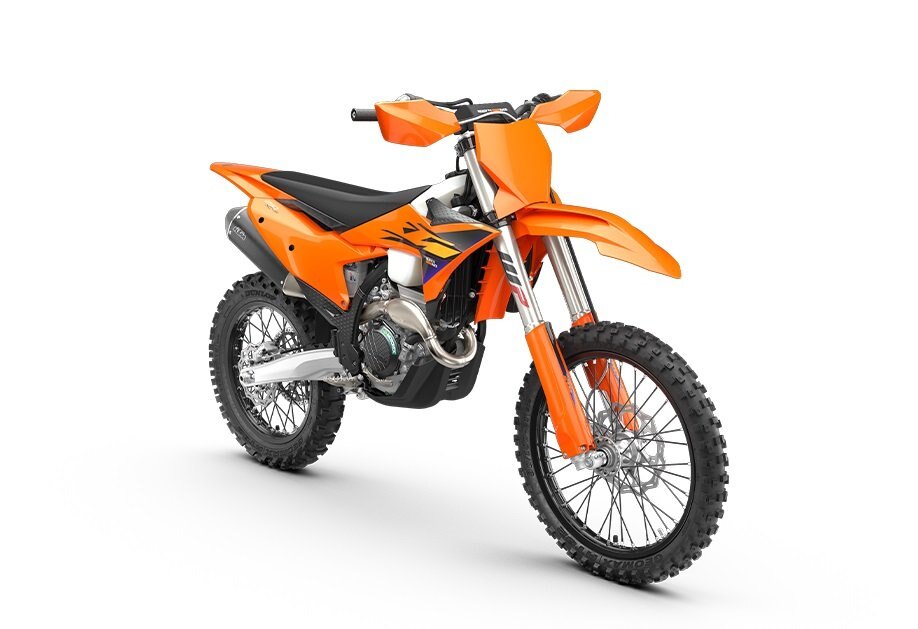

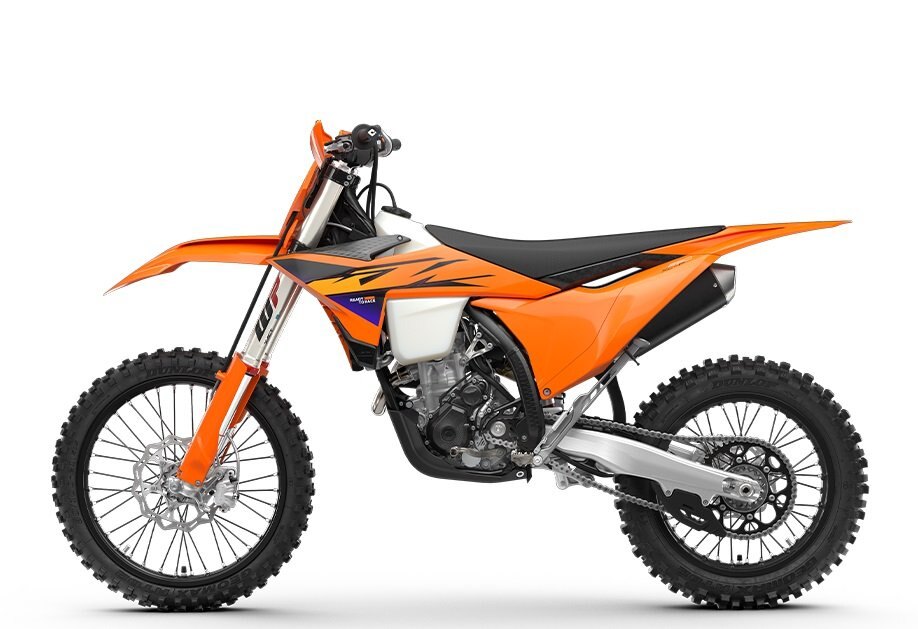

2026 KTM 250 XC-F

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

Revved for Victory

Screaming toward its 14,000 RPM redline, the KTM 250 XC-F is the definition of READY TO RACE. With a razor-sharp chassis, dialed-in suspension, and class-leading electronics, it's engineered to attack every inch of the track. Its high-revving engine delivers relentless power, making it a podium predator in the most competitive cross-country battles. The KTM 250 XC-F doesn't just chase victory -- it expects it.

Specifications

Model

XC-F

Category Name

Motorcycles

Year

2026

Manufacturer

KTM

before the gate

Easy Suspension Adjustment

As always, the suspension boasts an easy tool-free setup at both ends, ensuring you chase down the podium in total control. On the rear, a hand-adjustable dual compression option allows riders to adjust high- and low-speed settings in a matter of seconds. The forks on the front end are also easily modified thanks to hand-adjustable clickers on the bottom of the fork shoe and top cap.

Airbox

The robust one-piece design airbox on the KTM XC range features an air inlet sleeve and snorkel, which prevents deformation and improves airflow. But don't fret, toolless filter access is retained, with an intuitive filter mounting system and protection against dirt intrusion.

start strong

More Usable Power

Weighing in at a lightweight 57.5 lb (26.1 kg), this mid-weight powerhouse is the undisputed performance leader in the 250 cc 4-stroke class. Designed and tuned to provide the best performance and handling characteristics possible, the DOHC engine in the KTM 250 XC-F delivers endless mid-range and the top-end power together with the benefits of mass centralization and ideal anti-squat behavior.

Launch Control & Quickshifter

Launch control, ENGAGED! Designed for the holeshot, the KTM XC-F range comes standard with launch control and a Quickshifter function, allowing for fast upshifts without using the clutch. Launch control is easily engaged by pressing the traction control and Quickshifter buttons simultaneously and works by limiting the amount of power to the rear wheel, improving traction, and preventing loss of control under hard acceleration. Meanwhile, the Quickshifter function means you can bang through from 2nd to 6th gear with your focus solely on the first corner.

Selectable Maps + TC

The map select switch on the KTM XC-F range features a simpler design, allowing for easier functionality in switching between 2 engine maps. Map 1 provides a more linear power curve, while map 2 punches all-out with aggressive throttle and explosive power. Luckily, Traction control is easily toggled to an on or off position from the same switch, ensuring maximum traction and a distinct advantage in wet or muddy conditions.

calm under fire

Absolute Control

No matter how gnarly the trail is, you'll stay in complete control thanks to a rider-focussed frame design that has not only been engineered for longitudinal rigidity, but also repositions rotating mass closer to the center of gravity. Thick frame walls also improve reliability, flex characteristics and offer unmatched rider feel. The shock mounting also provides the perfect amount of anti-squat for better traction out of corners, while the footpeg mounting position is positoned in such a way to reduce the risk of hooking up on roots or rocks. Additionally, forged brackets on the lower frame rails allows for easy installation of the skid plate, too.

Ergonomics

The KTM XC and XC-F range feature tank shrouds with bi-compound plastics, which work alongside the specially-developed rider triangle, providing unmatched knee contact and gripping surfaces - especially when standing on the pegs. While the plastics work to expel mud buildup in wet, muddy conditions, the flat seat profile and high-grip black seat cover provide exceptional rider movement and control. A handy grip pocket under the seat, just above the airbox, makes gripping the bike and lifting it much easier.

Go the distance

You call it a fuel tank. We call it a 2.24 gallon (8.5 liter) race bucket. The transparent polythene fuel tank has a fuel tank roll - which not only secures the tank more firmly in place, and allows for easy fuel level monitoring - it also protects the frame from unwanted scrubbing and race rash.

hit the big stuff

Mass Centralization

Besides the expertly crafted, hydro-formed, laser-cut, and robot-welded frame being engineered to provide exceptional rider feedback and straight-line stability, the chassis consists of specifically calculated parameters of longitudinal and torsional flex. This means the frame acts as a "shock absorber" of sorts, making for a less harsh ride, resulting in less rider fatigue over many hard laps.

WP XACT Shock

Keeping things in check at the rear, the WP XACT rear shock for uses settings directly from the KTM Factory Racing Teams. The frame and shock geometry mean more ground clearance at the linkage, making it less susceptible to bottoming out. Small diameter linkage bolts save weight, while new linkage seals refine rear shock response and advanced damping characteristics.

WP XACT Fork

Let's get the technical parts out of the way first; the 48 mm WP XACT Closed Cartridge spring forks fitted to the KTM XC and XC-F line-up feature progressive and consistent damping, while oil and air bypasses reduce pressure peaks. In combination with the mid-valve damping system, all this provides exceptional feedback and rider comfort. The fork also has settings which not only complement the frame and rear linkage, but ensure stellar performance at all levels. Speaking of settings, these are easily adjusted via easy-access click adjusters for compression and rebound.

maintaining momentum

Connectivity Unit Offroad

Riders - meet your new secret weapon. Available in the KTM PowerParts catalog as a must-have addition to the KTM XC-F range, the Connectivity Unit Offroad offers a wide range of functionalities and adjustability options via the KTMconnect app. The CUO gives you a new insight into your riding, allows you to alter your engine behavior, and even provides you with optimized suspension settings based on individual preferences and riding conditions. Welcome to the next level moto.

Consistency

The compact and lightweight DOHC cylinder features a short profile with the camshaft located as close to the center of gravity as possible. Lightweight valves are actuated via a DLC coated finger followers with optimized timing, specifically designed to deliver precise levels of torque and throttle response. The diameter of the intake valves is 32.5 mm, while on the exhaust it is 27.5 mm. The intake ports also allow higher flow coefficients, resulting in a more efficient and powerful engine, with the valve cover reducing the number of mounting screws, and a single oil spray jet guarantees efficient cooling while keeping the weight low.

Ultimate rigidity

Count on a durable chain guide and chain guard and minimize the chances of hooking on external objects - especially in extremely muddy terrain while reducing dirt build-up around the swingarm and rear sprocket. For 2026 we've also modified the fixing points and routing of the wiring harness so it's less prone to wear and damage.

engine technical details

EMS

Keihin EMS

Clutch

Wet, DDS multi-disc clutch, Brembo hydraulics

DESIGN

1-cylinder, 4-stroke engine

DISPLACEMENT

249.9 cm³

TRANSMISSION

6-speed

Engine Stroke

4-Stroke

Primary Drive

24:72

Engine Cylinder

Single cylinder

FUEL-MIXTURE GENERATION

Keihin EFI, throttle body 44 mm

Clutch Primary Drive Teeth

chassis technical details

CHAIN

520 X-Ring

REAR BRAKE

Disc brake

FRONT BRAKE

Disc brake

FRAME DESIGN

Central double-cradle-type 25CrMo4 steel

REAR SUBFRAME DESIGN

Aluminum-reinforced polyamide

suspension technical details

Rear Suspension

WP XACT Monoshock with linkage

Front Suspension

WP XACT-USD (AER), Ø 48 mm

Rear Suspension Setting

Preload adjuster

Suspension Travel (rear)

300 mm

Suspension Travel (front)

300 mm

Front Suspension Adjustment

Compression (high and low speed), rebound

dimensions technical details

Seat Height

954 mm

Ground Clearance

343 mm

Weight (without Fuel)

103.4 kg

Tank Capacity (approx.)

8.5 l

literature

Name	Link
Technical Specifications	Download

Documents

KTM-technical-specifications (9).pdf
