ID # 31051850

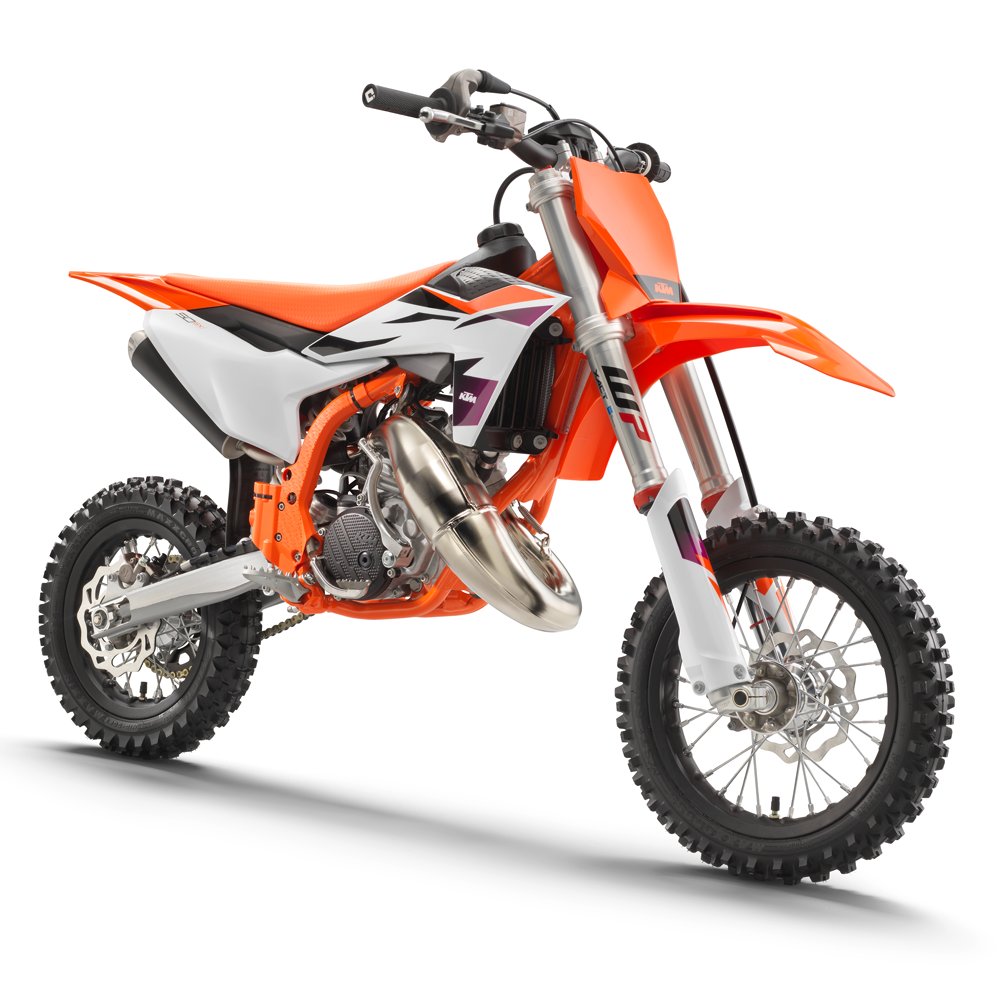

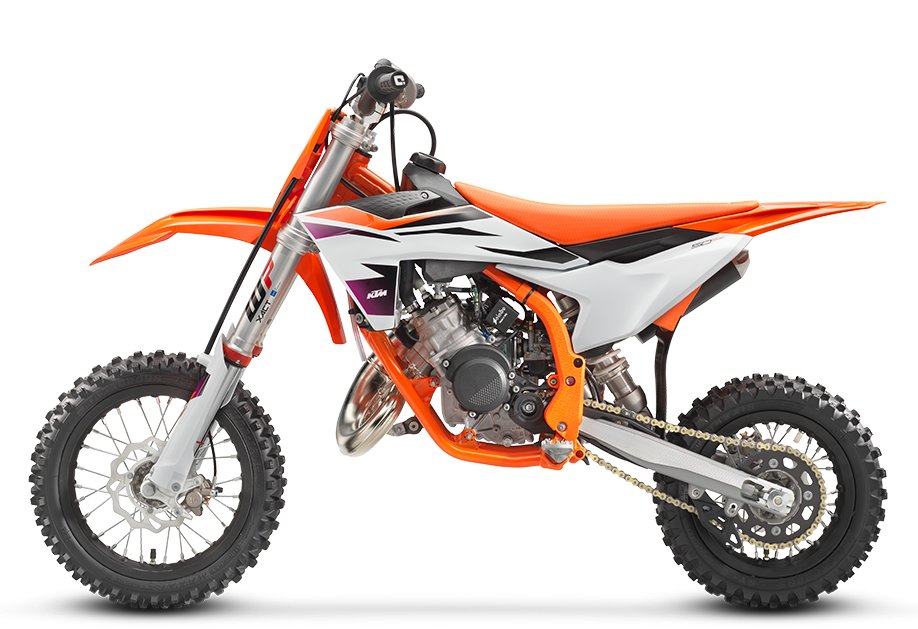

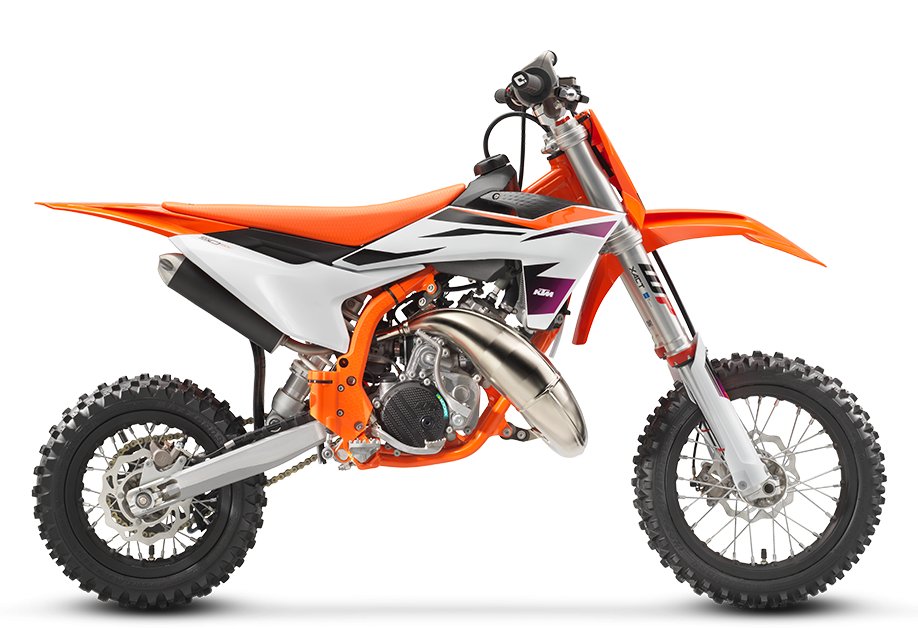

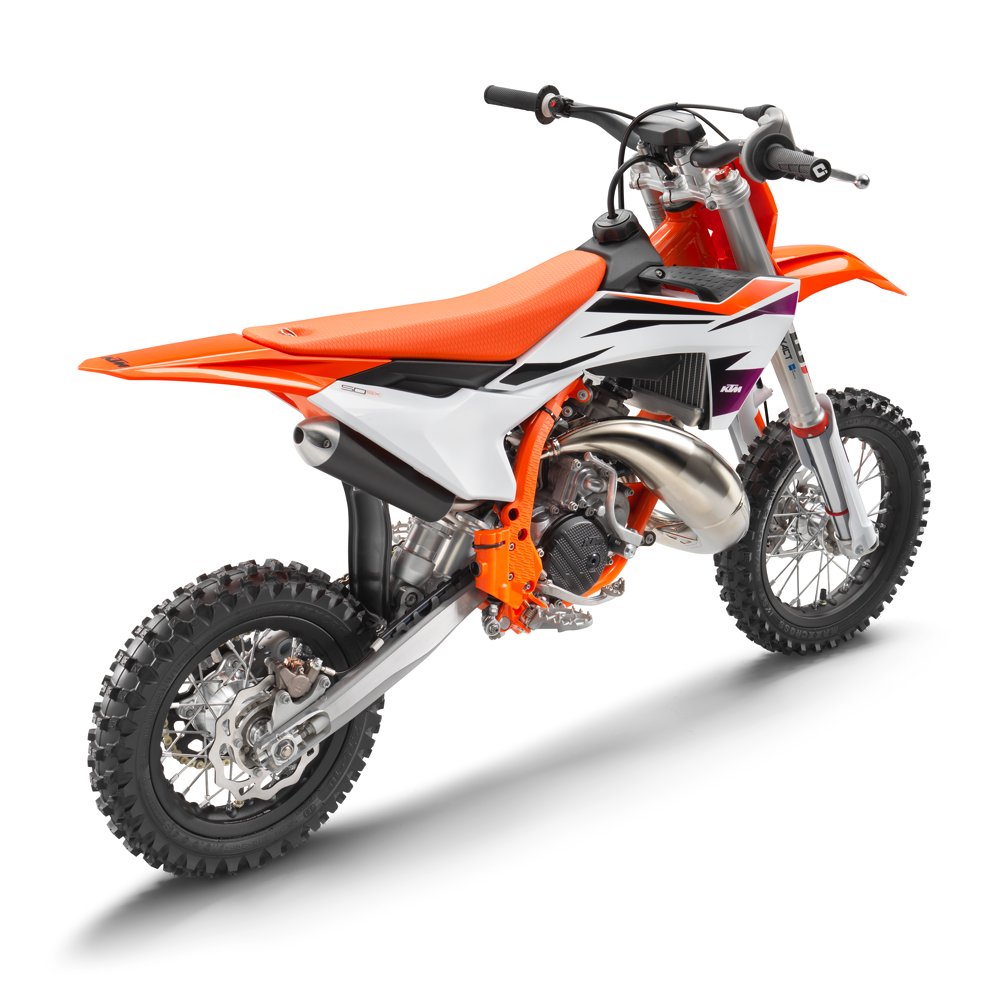

2024 KTM 50 SX

Dealer Price $5,499 CAD

$1280 (Freight/PDI/Levies) + $185 (Doc)

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

KTM provides high-quality engines with top of the line WP Suspenion and exceptional response time. All models currently listed are in stock! For details 604-251-1212, We finance! & Trades are welcome! Current Factory Discounts are applied to retail price

CURRENT KTM FINANCE PROMOTION INCLUDES (TD) 0.99% APR / 36 Months - OR - 3.99% APR / 60 Months -> Please note Promotion begins April 1, 2024 - April 30, 2024

Contact 604-251-1212 for general inquiries or email Harrison@Daytonamotorsports.ca and Patrick@Daytonamotorsports.ca Dealer# 30782

Specifications

Model

50 SX

Category Name

Motorcycles

Year

2024

Sale Type

New

Manufacturer

KTM

EMS

Seletra 2p D36

BORE

39.5 mm

CHAIN

415, Non-sealed

CLUTCH

Centrifugal clutch (adjustable)

DESIGN

1-cylinder, 2-stroke engine

STROKE

40.7 mm

STARTER

Kickstarter

REAR BRAKE

Disc brake

FRONT BRAKE

Disc brake

SEAT HEIGHT

653 mm

DISPLACEMENT

49.9 cm³

FRAME DESIGN

Chrome-molybdenum steel central-tube frame

TRANSMISSION

Single-speed automatic

REAR SUSPENSION

XACT WP PDS mono shock

FRONT SUSPENSION

XACT 35 WP Upside-Down fork, Ø 35 mm

GROUND CLEARANCE

233 mm

STEERING HEAD ANGLE

66 °

WEIGHT (WITHOUT FUEL)

42.5 kg

TANK CAPACITY (APPROX.)

2.3 l

REAR BRAKE DISC DIAMETER

160 mm

SUSPENSION TRAVEL (REAR)

190 mm

FRONT BRAKE DISC DIAMETER

160 mm

SUSPENSION TRAVEL (FRONT)

200 mm

before the gate

Adjustablity

Different adjustability options were built into the 2024 KTM 50 SX construction using scientific statistical data and young racers' input data. Finding the right fit for your little ripper is easy thanks to height-adjustable suspension, handlebar position, subframe, and bodywork, taking the seat height from a low setting of 24.9 inches (634 mm) to a taller setting of 26.8 inches (682 mm).

Ignition

A new digital ignition finds its way onto the 2024 KTM 50 SX, with improved processing power and an all-new ignition curve, making for a cleaner burn and smoother power delivery. Individual ignition timing across the entire rpm range, just like that found on the full-sized KTM SX range, adds a key advantage to the digital ignition. Ignition timings are also new, matching the revised engine layout, longer stroke, and other updates.

Carburetor

A proven Dell'Orto type PHBG 19 BS carburetor takes prime position in producing the goods in the 2024 KTM 50 SX, with updated settings that work perfectly in harmony with the new engine, exhaust, and air intake design.

start strong

Performance

The 2024 KTM 50 SX features a modern and compact engine using the latest 2-stroke technology. Using a 3-shaft design, the crankshaft is positioned near the center of gravity, which not only benefits mass centralization but also creates the ideal intake angle into the reed valve for top-level performance. An independent cylinder blank allows for a completely new cylinder design, with increased power.

Power-Reduction Kits

For absolute beginners, the KTM POWERPARTS catalog now offers a choice of two power-reduction kits. The first allows for a entry-level, moderate and controllable power reduction to 4hp, with the second allowing for a more intermediate power kit unleashing 8hp for mid-level riding levels.

Clutch

The 2024 KTM 50 SX is fitted with an updated and reworked automatic centrifugal clutch, reducing complexity for younger riders and helping to boost riding confidence. The multi-disc clutch delivers a precise and predictable power delivery across the RPM range. It can be set to suit rider preferences or track conditions without using any special tools. Also, a reinforced clutch basket provides improved durability, wear, and consistent performance.

Spark Plug

There's no more worrying about breaking the plug, thanks to the 2024 KTM 50 SX featuring a new spark plug from BRISK with a longer thread. Also, thanks to this innovation from BRISK, the part number is printed on the spark plugs for easy reading.

calm under fire

Tank

The KTM 50 SX is ready to fuel the fire in your little ripper with an updated tank design to compliment the new frame concept and bodywork.

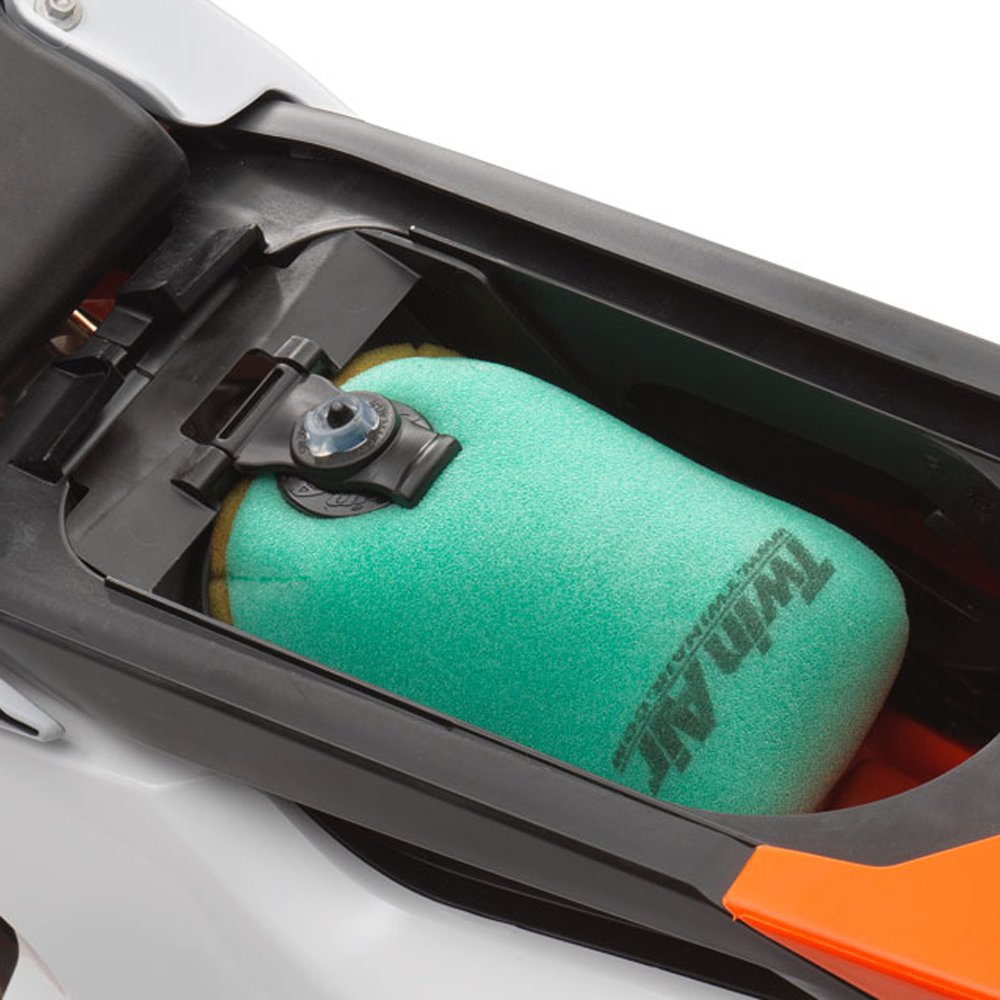

Airbox and Filter

An all-new airbox concept features a conventional suction sleeve made from a hard-wearing polyamide instead of rubber and a Twin Air filter mounting system that now features snap locks for easy and intuitive mounting. The Twin Air filter is also placed under the seat and is easily accessible without any tools by simply removing the seat. It also features improved dirt intrusion resistance, with no more dirt falling into the intake tract when changing the filter.

Ergonomics

Mimicking the full-size KTM SX range, the KTM 50 SX features the same advancements found in the larger KTM SX range. Slimmer, sleeker, and better suited to standing on the pegs, the side panels now work much better with young riders' boots, allowing a proper squeezing of the bike when standing up. The front number plate incorporates plastic flaps to protect the lower triple clamps from roost, while the tank spoiler features a bicomponent technology featuring the KTM-specific texture on the upper part. Side number plates are kept as close to the frame as possible, with the general seat line sitting slightly flatter compared to the old generation.

Handlebars & Grips

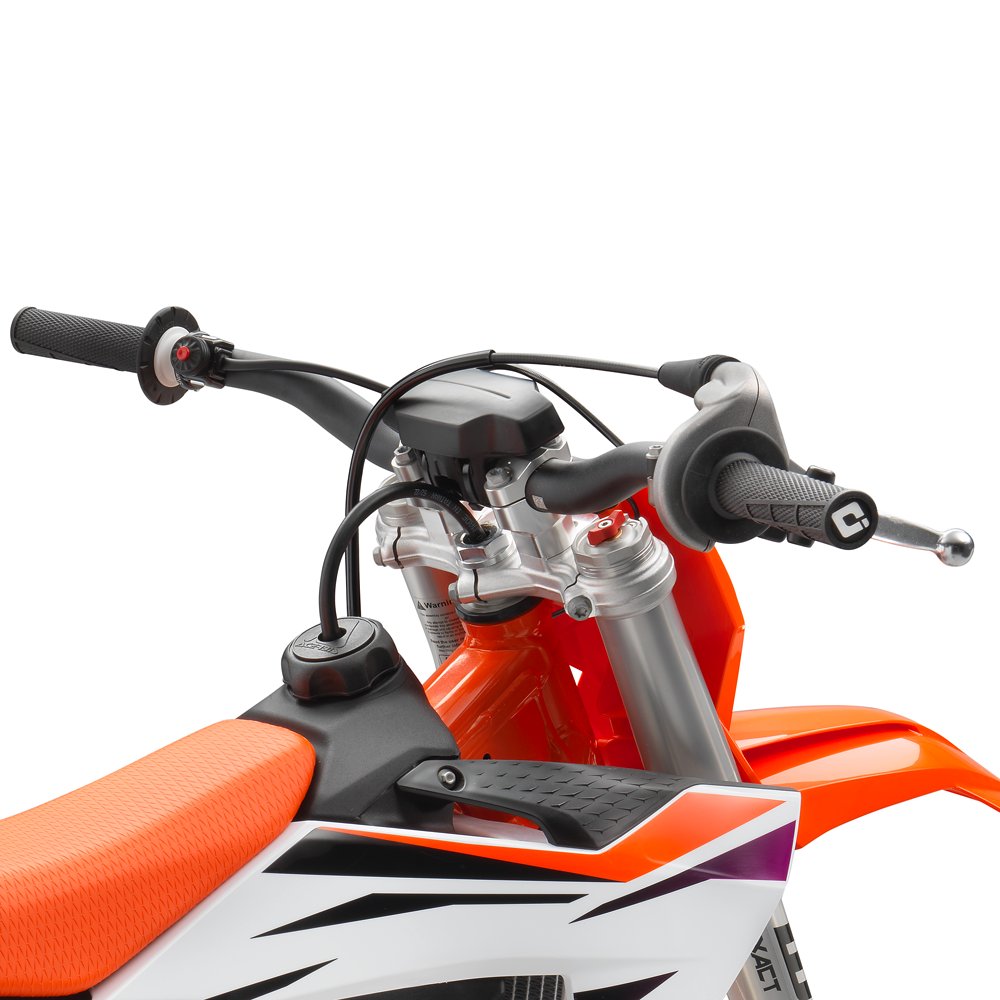

Hold on tight! The high-quality, tapered, black handlebar is made of lightweight aluminum alloy and ensures top stability, vibration damping, and control. An entirely new bend and profile is designed specifically to meet the needs of young riders, with factory-specific grey ODI grips on the left, with a vulcanized ODI grip on the right-side throttle assembly, adding to the overall quality. A crash pad on the handlebar protects the rider from any rough contact or impact with the bars.

Frame

Right, this is a big one. For the first time ever on a 50cc, the 2024 KTM 50 SX boasts an all-new high-strength chromium molybdenum steel frame design with forged connecting parts. These, together with carefully calculated parameters of longitudinal flex and torsional rigidity, and incorporated sheet metal parts that allow tailormade stiffness, an unprecedented quality of the Mini frame could be achieved. The new frame layout features a typical MX design without any cross tube behind the steering head. Like our full-size models, the rear shock mount is separated from the main upper frame tube. The frame now also comes with frame protectors as standard.

hit the big stuff

Wheels & Tires

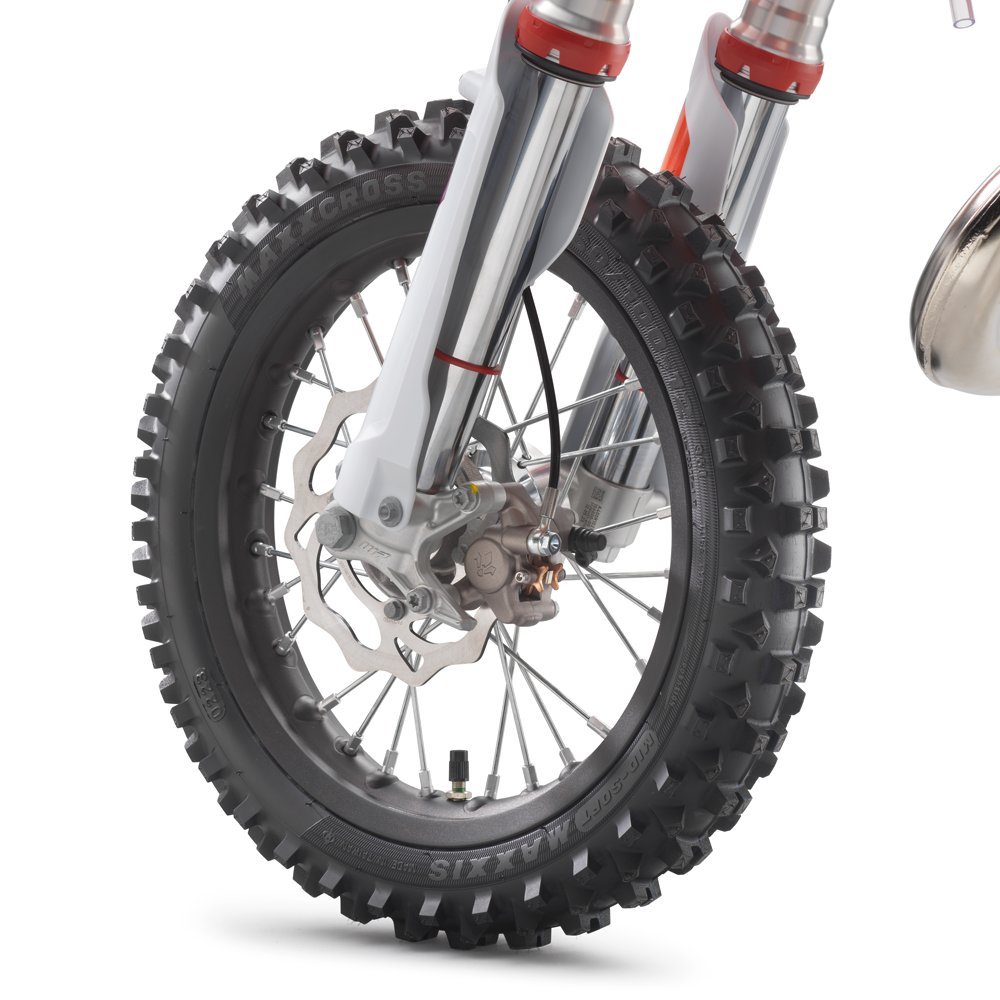

Rolling off the race rig and into the pit lane, the 2024 KTM 50 SX uses lightweight, black anodized, aluminum rims just like the full-size KTM SX range. These provide the highest levels of strength and reliability, while MAXXIS MX-ST tires deliver outstanding performance on any terrain, along with exceptional straight-line stability.

Footpegs

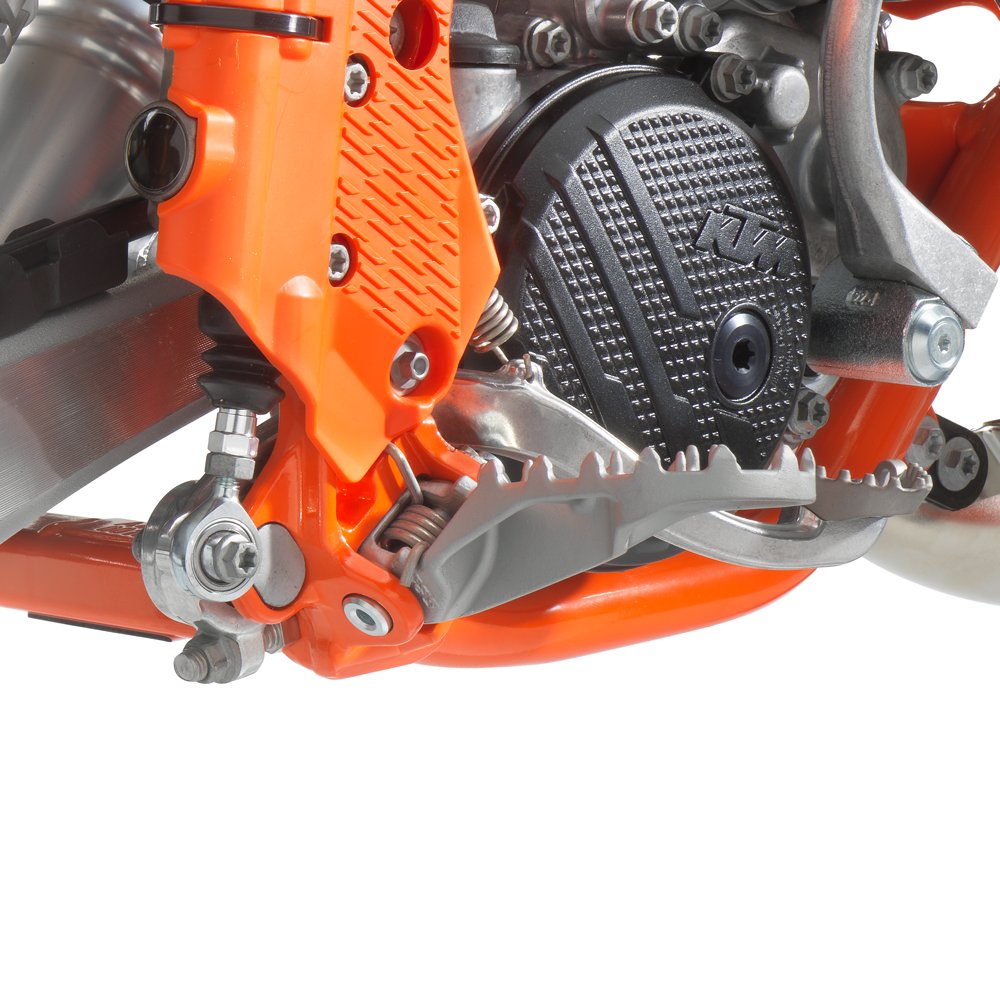

All-new, "no-dirt" footrests offer a bigger surface area for improved grip while standing on the pegs and are less susceptible to hooking up in deep ruts, take-offs when scrubbing, or track barriers.

Suspension

Featuring the latest in suspension technology, the KTM 50 SX is fitted with a state-of-the-art, lightweight 35 mm USD WP XACT AER fork. With 205 mm of wheel travel, the air unit in the left fork leg can also be adjusted easily using an air pump for rider preference, rider weight, or track conditions. At the rear, an all-new fully-adjustable WP XACT monoshock boasts new mounting points on the frame, making it more compact, and providing the perfect balance and damping characteristics to match the fork.

Brakes

Featuring the same level of technology offered on the full-size KTM SX range, the 2024 KTM 50 SX is fitted with dramatically improved hydraulic brake calipers and waved state-of-the-art front and rear brake discs. This system ensures advanced braking feel and unmatched stopping performance in all conditions, specifically on wet or muddy tracks, with improved durability and brake pad longevity.

maintaining momentum

Exhaust

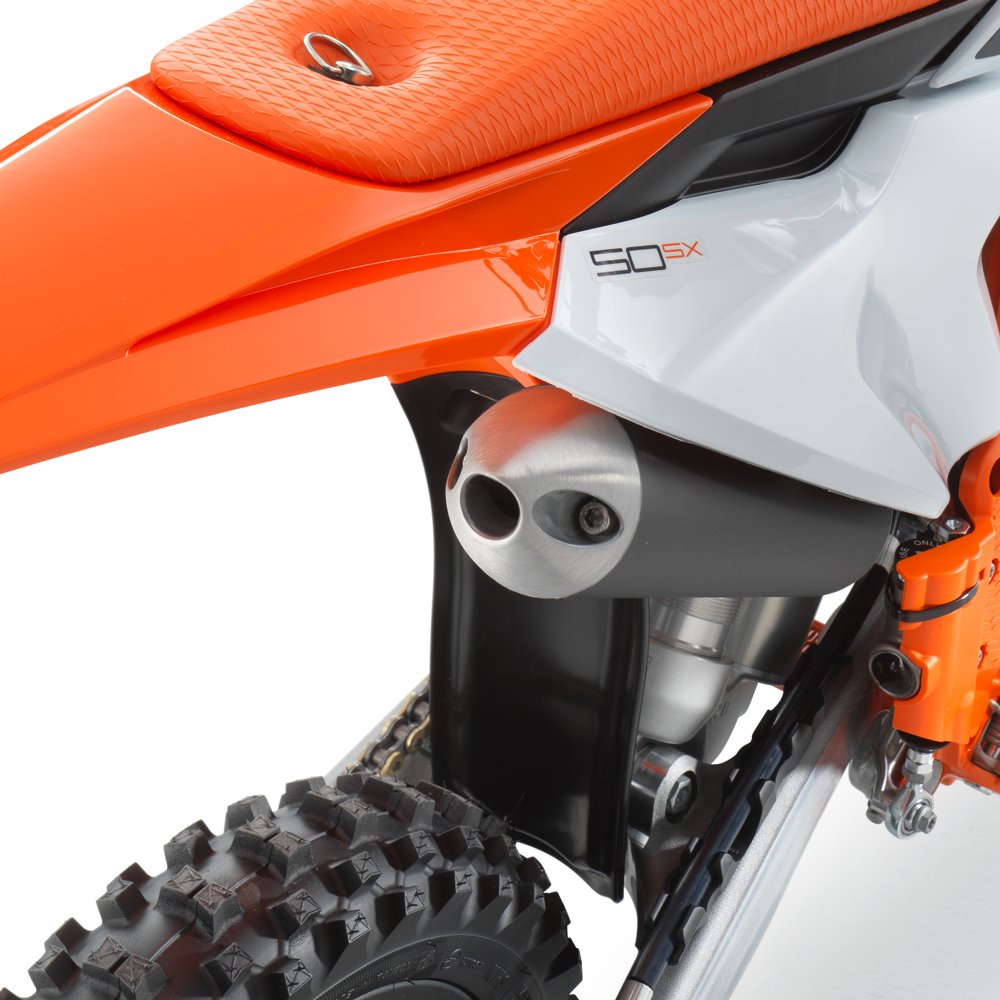

A completely new exhaust system features the same manufacturing process as the full-size 2-stroke KTM SX range, with improved overall quality and performance. This has resulted in massive improvements in thermodynamics. Moreover, improved sealing of the silencer end cap and a new rubber between the header pipe and silencer adds another level of quality to the new exhaust system. The silencer has also been updated and now comes with a black anodized finish and a signature 'Braaaaap!'.

Radiator

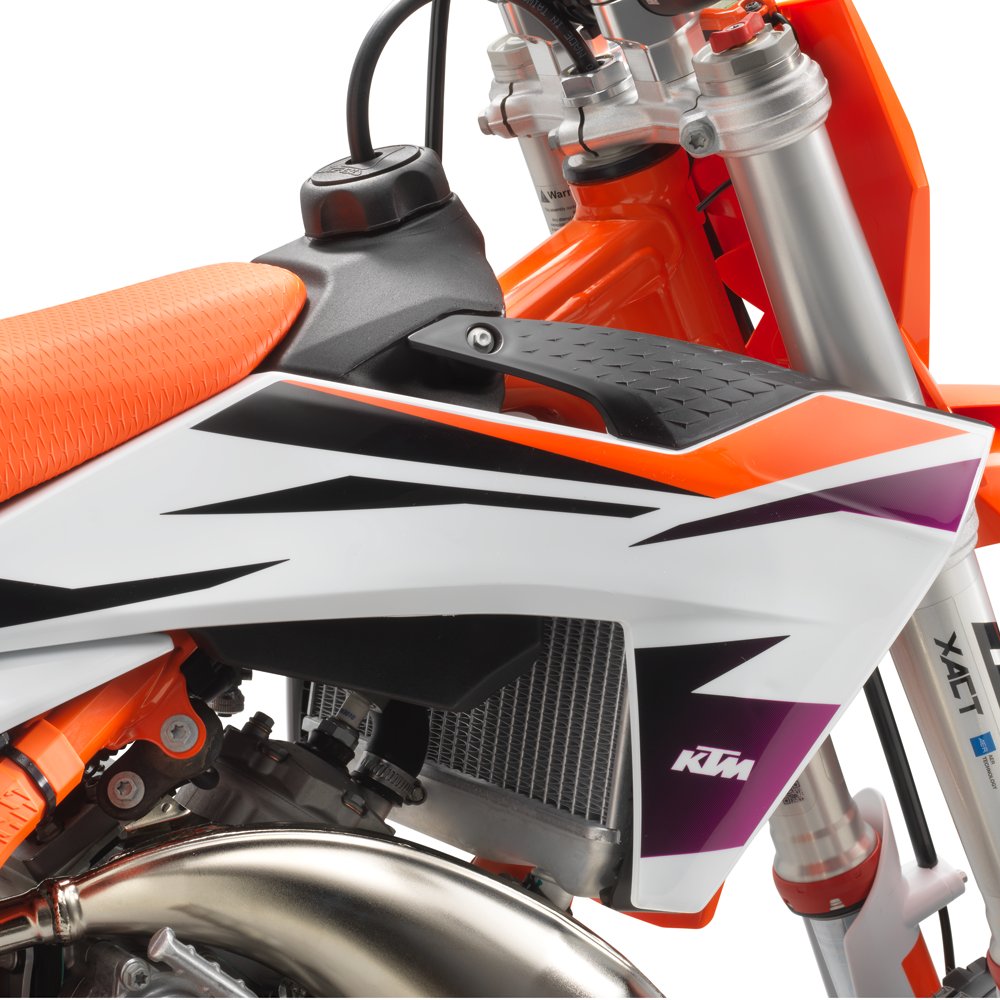

Featuring state-of-the-art technology and superior cooling power, the 2024 KTM 50 SX uses one large radiator with more capacity instead of two smaller separate ones. This concept allows for better integration of the radiator into the frame, with the tank spoilers channeling air through the cooling fins efficiently.

Hour Meter

Keep track of engine hours easily, with an hour meter now mounted at the same position behind the front number plate - as on the full-size models. This makes for easier reading and has a lower risk of dirt and water fowling up the display.

Graphics

Modeled after the full-size motocross bikes, the KTM 50 SX features typical READY TO RACE graphics using the time-proven in-mold application process to ensure the best durability and quality.
