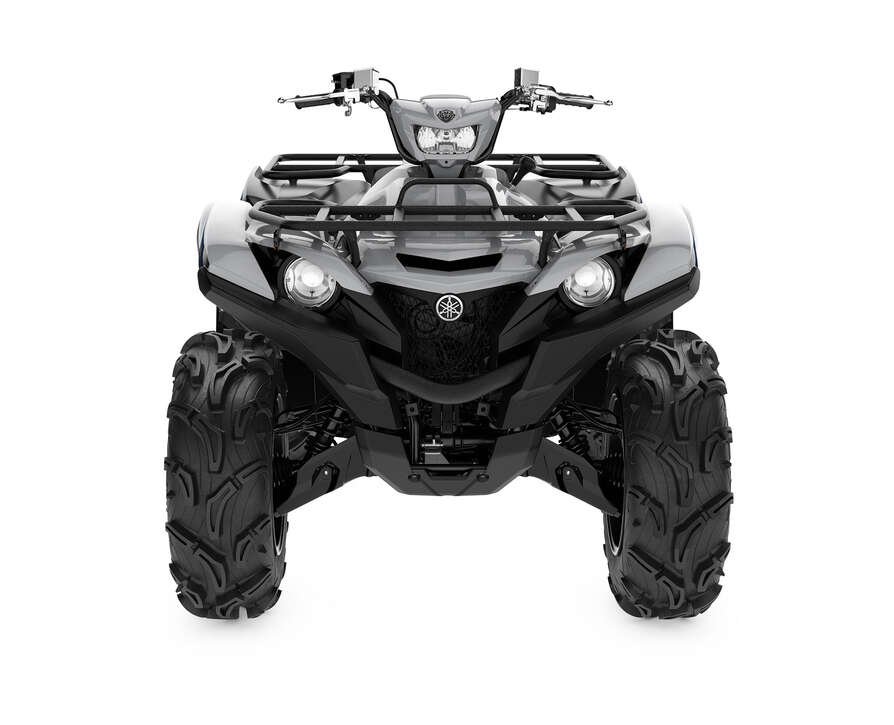

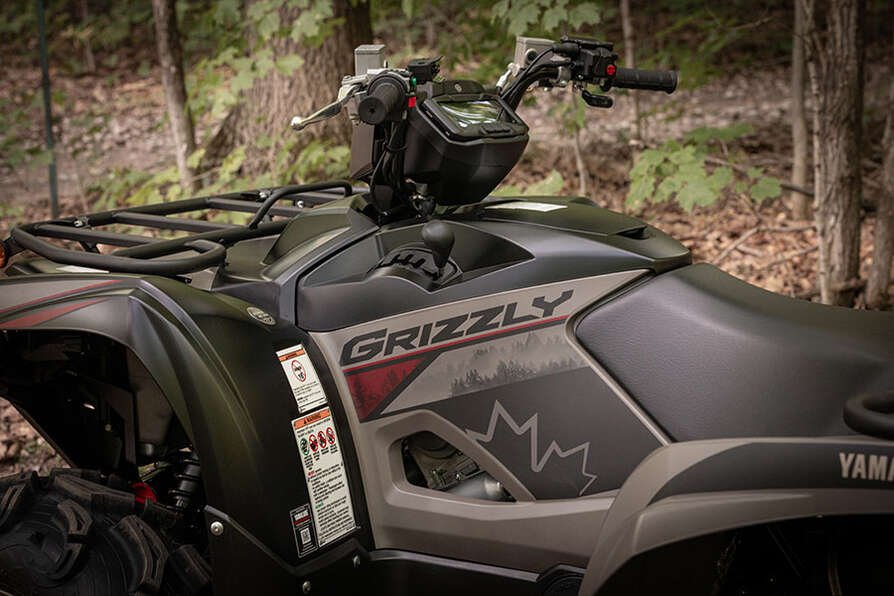

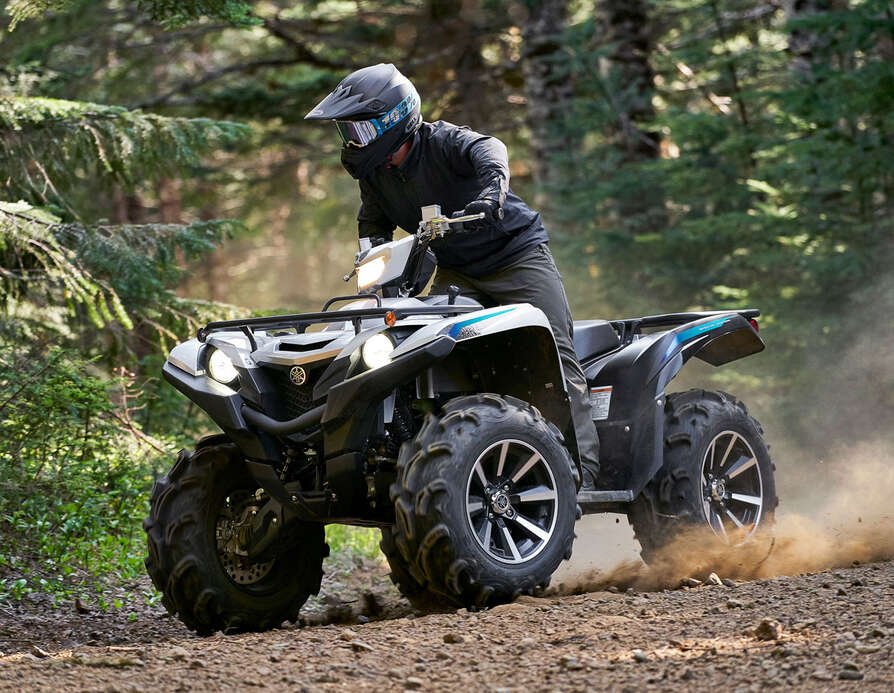

2024 Yamaha GRIZZLY EPS SE Realtree Edge Camouflage

  • 2024 Yamaha GRIZZLY EPS SE Realtree Edge Camouflage
In Stock

CURRENT PROMOTIONS

Dealer Price $13,999 CAD
$1268 (Freight/PDI/Levies) + $175 (Doc)
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

The Special Edition Grizzly further enhances rugged terrain capability and confidence with Maxxis® 'Zilla tires, 14-inch aluminum wheels and high-quality painted bodywork.
Specifications
Model
Grizzly
Category Name
ATVs
Year
2024
Sale Type
New
Manufacturer
Yamaha
Color
Realtree Edge Camouflage
Engine Size
686cc
DISPLACEMENT
686cc
engine
ENGINE
Liquid-cooled, SOHC 4-stroke
IGNITION
TCI
STARTING
Electric
FINAL DRIVE
On-Command 3-way locking differential; 2WD, 4WD, locked 4WD; shaft
DISPLACEMENT
686cc
TRANSMISSION
Ultramatic V-belt with all-wheel engine braking; H, L, N, R, P
FUEL DELIVERY
Yamaha Fuel Injection (YFI), 44 mm
BORE AND STROKE
102 mm x 84 mm
COMPRESSION RATIO
10 : 1
chassis
TIRES (REAR)
Maxxis® ZILLA® MU01 27 x 10-14
BRAKES (REAR)
Dual hydraulic disc
TIRES (FRONT)
Maxxis® ZILLA® MU01 27 x 10-14
BRAKES (FRONT)
Dual hydraulic disc
SUSPENSION (REAR)
Adjustable independent double wishbone with anti-sway bar; 5-way preload adjustment / 232 mm (9.1") of wheel travel
SUSPENSION(FRONT)
Independent double wishbone; 5-way preload adjustment / 193 mm (7.6") of wheel travel
highlights

Canadian Edition2024 Yamaha GRIZZLY EPS SE Realtree Edge Camouflage

To celebrate Yamaha Motor Canada’s 50th anniversary, we are offering select models in exclusive Canadian Edition variations. The unique design of these models represent the beautiful, vast and rugged terrain that only Canada has to offer!

CAPABILITY2024 Yamaha GRIZZLY EPS SE Realtree Edge Camouflage

For the trail rider looking for excitement in every ride, the ideal engine should balance strong big-bore power with immediate, responsive midrange. The Grizzly EPS SE features a potent 686cc engine with power delivery, torque and engine character all optimized for recreational riding.

COMFORT2024 Yamaha GRIZZLY EPS SE Realtree Edge Camouflage

An independent double wishbone suspension with 7.6 inches of front wheel travel and 9.1 inches at the rear, along with nitrogen-charged shocks offering 5-way adjustable preload, combine to provide excellent rider comfort on even the most challenging trails.

CONFIDENCE2024 Yamaha GRIZZLY EPS SE Realtree Edge Camouflage

Center-mounted, heavy-duty 2-inch receiver comes standard on Grizzly EPS SE and can tow up to 1,300 pounds.



key features
  • Electric starting.
  • Big Bore Engine Designed for Aggressive Trail Riding
  • High-Performance Ultramatic® Transmission
  • Exclusive On-Command® 4WD
  • Class-leading Electric Power Steering
  • High-Mounted Air Intake



critical data
WIDTH
1250 mm (49.2")
HEIGHT
1270 mm (50")
LENGTH
2070 mm (81.5")
WHEELBASE
1250 mm (49.2")
WET WEIGHT
342 kg (754 lb)
SEAT HEIGHT
917 mm (36.1")
FUEL CAPACITY
18 L
TOWING CAPACITY
600 kg (1,322 lb)
MAXIMUM GROUND CLEARANCE
300 mm (11.8")
features and benefits

KEY DIFFERENCES BETWEEN GRIZZLY 700 EPS & GRIZZLY 700 EPS SE:

  • Factory installed WARN® winch
  • Oversized Aluminum alloy wheels
  • 27-inch Maxxis® Zilla® tires
  • Special Edition paint & graphics

ENGINE

  • Electric starting.
    • includes auto decompression system for fast, easy starts
  • Big Bore Engine Designed for Aggressive Trail Riding
    • For the trail rider looking for excitement in every ride with ideal balance of 700-class big bore power and strong midrange that gives immediate response
    • Rebuilt for 2019, the Grizzly EPS brings even more riding excitement without losing an ounce of comfort thanks to redesigned engine mounts
    • More useable power throughout rev range
  • High-Performance Ultramatic® Transmission
    • Class-leading transmission combine immediate response with advanced features like all-wheel engine braking
    • Proven to be the most durable ATV transmission on the market
    • Dual range, high- low transmission with reverse
    • High mounted belt cooling ducts help prevent water ingestion
  • Exclusive On-Command® 4WD
    • Keeps rider in charge with selectable 2WD, 4WD and 4WD limited-slip and 4WD with diff. lock modes
    • Delivers power consistently as required
  • Class-leading Electric Power Steering
    • Provides industry's best balance of steering assist and positive feedback from trail, with light steering, speed-sensitive steering response and minimal fatigue
  • High-Mounted Air Intake
    • Tackle mud and water thanks to the Grizzly's high-mounted air intake layout
    • Increases power and torque while providing additional room for on-board storage
    • Easy, tool-less servicing of the foam air filter
  • Stainless Steel Exhaust
    • To maintain clean-running performance the Grizzly EPS uses a stainless steel exhaust system
    • Features screen-type spark arrestor for greater power with minimum noise output
  • High capacity Radiator
    • Slow-speed, technical riding can bring added stress and heat, so the Grizzly EPS has a high-capacity radiator with fan assist
    • Delivers plenty of air flow for maximum cooling efficiency
    • Positioned high in the frame for optimal protection

CHASSIS

  • Rugged steel type frame.
    • compact design provides nimble, responsive handling
  • 27 inch SE Tire Package
    • For deep mud, steep slopes and any other poor traction terrain, the Grizzly EPS SE comes ready to climb
    • Big 27 inch Maxxis® Zilla® tires mounted on strong, lightweight alloy rims
    • Uses dual-compound sidewalls and an extra-tough carcass construction to handle anything you can throw at them
  • Aggressive and Durable Styling
    • Rugged composite front bumper resists scratching and rust
    • Injection-molded fenders and CV joint guards protect again rock and debris
  • Independent Double Wishbone Front and Rear Suspension
    • 7.6 inches of front wheel travel / 9.1 inches of rear travel
    • Provide excellent rider comfort even on the toughest trails
    • Nitrogen-charged shocks with 5-way adjustable preload
  • Generous Ground Clearance
    • To handle any terrain, the Grizzly EPS offers impressive 11.8 inches of maximum ground clearance
    • Full-length composite skid plates provide protection against rock and debris damage
  • Underseat Fuel Tank
    • Optimized 4.76 gallon fuel tank is located under the seat for excellent mass centralization and handling
  • LED Headlights and Taillights
    • Uses less power and creates a brighter, sharper illumination
    • Offers maintainance free durability
    • Handlebar-mounted halogen work light provides additional lighting that moves with rider input for excellent visibility
  • Four-Wheel Hydraulic Disc Brakes
    • Powerful and consistent braking come standard on every Grizzly EPS model thanks to four-wheel hydraulic disc brakes
    • Unmatched braking feel
  • Rugged & roomy floorboards.
    • excellent rider foot protection
    • helps reduce keep mud & water splash hitting rider
  • Work-Ready Tow Capacity
    • Center-mounted, heavy duty two-inch receiver comes standard on Grizzly
    • Capable to tow more than 1300 pound

DESIGN

  • Factory installed WARN® winch
  • Easy-read Instrument Package
  • Plush Seat
    • Improves rider comfort for extended days exploring every trail
    • Plenty of room for the rider to move during aggressive riding
  • Ready for Accessories
    • Engineered in concert with a range of accessories for perfect fit and function
    • Standard 12V power point to keep devices charged.
