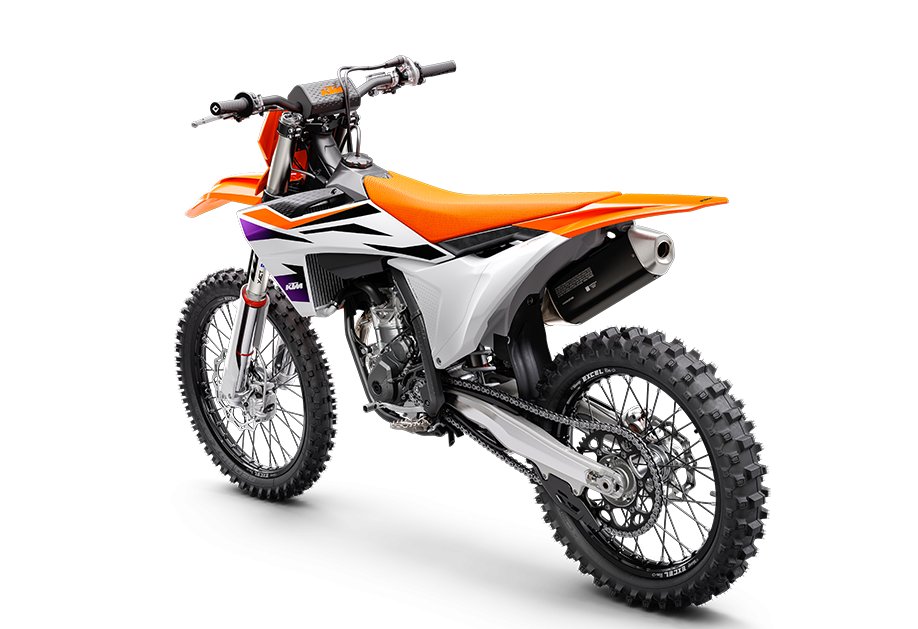

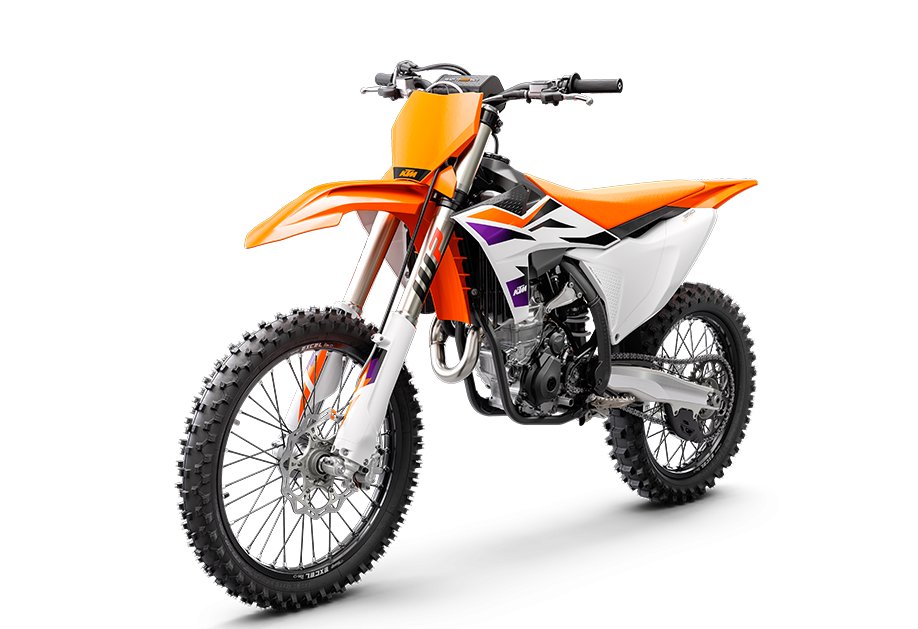

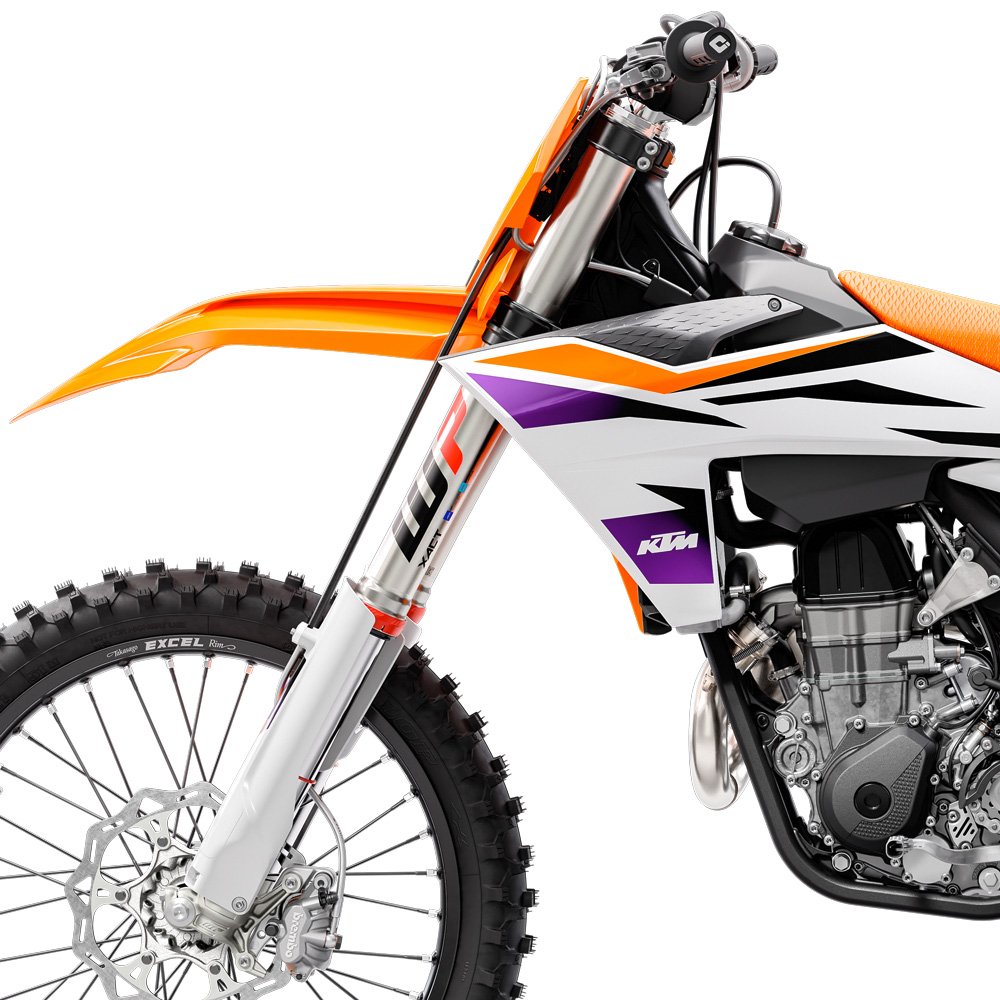

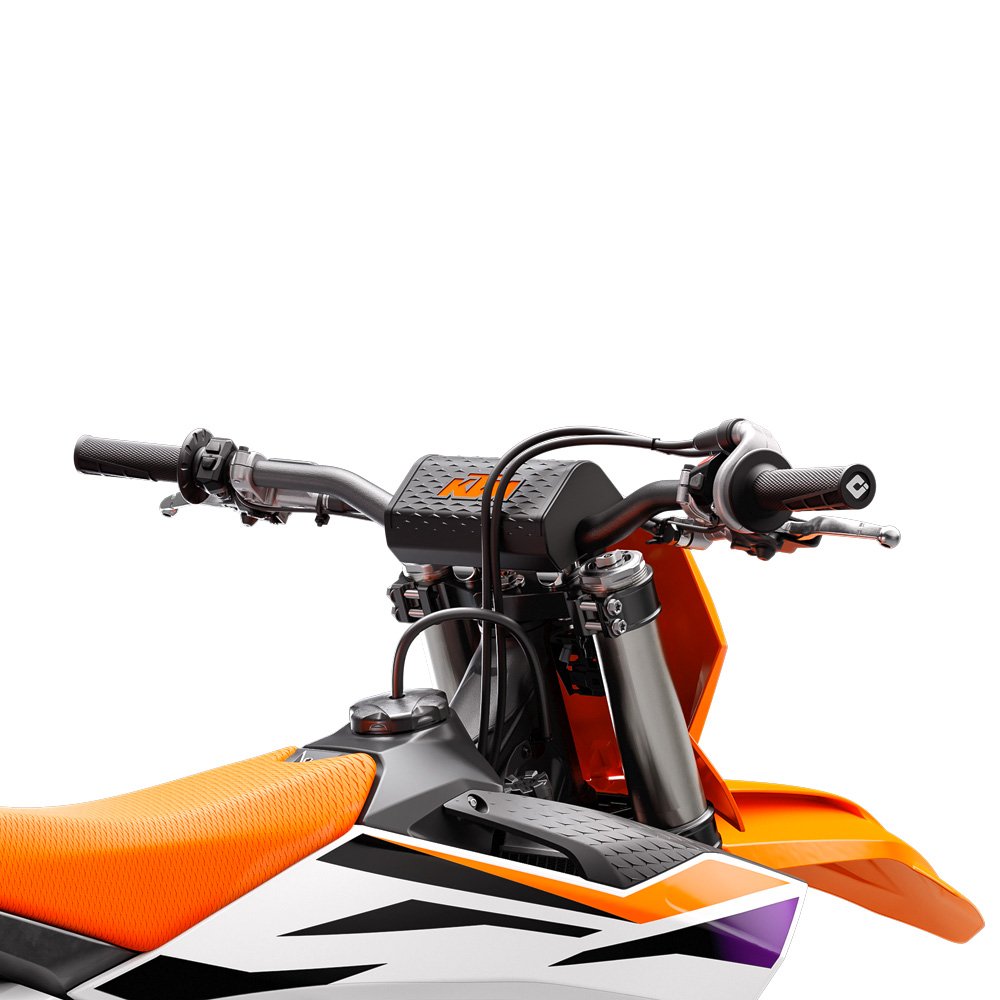

2024 KTM 350 SX-F

Price $10,499 CAD

$1280 (Freight/PDI/Levies) + $185 (Doc)

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

KTM provides high-quality engines with top of the line WP Suspenion and exceptional response time. All models currently listed are in stock! For details 604-251-1212, We finance! & Trades are welcome! Current Factory Discounts are applied to retail price

CURRENT KTM FINANCE PROMOTION INCLUDES (TD) 1.99% - 24 m / 2.99% - 36m / 3.99% - 48m

Contact 604-251-1212 for general inquiries or email Harrison@Daytonamotorsports.ca and Patrick@Daytonamotorsports.ca Dealer# 30782

Specifications

Model

350 SX-F

Category Name

Motorcycles

Year

2024

Manufacturer

KTM

EMS

Keihin EMS

BORE

88 mm

CHAIN

520, Non-sealed

CLUTCH

Wet multi-disc DS clutch, Brembo hydraulics

DESIGN

1-cylinder, 4-stroke engine

STROKE

57.5 mm

STARTER

Electric starter

REAR BRAKE

Disc brake

FRONT BRAKE

Disc brake

SEAT HEIGHT

958 mm

DISPLACEMENT

349.7 cm³

FRAME DESIGN

Central double-cradle-type 25CrMo4 steel

TRANSMISSION

5-speed

REAR SUSPENSION

WP XACT Monoshock with linkage

FRONT SUSPENSION

WP XACT-USD, Ø 48 mm

GROUND CLEARANCE

359 mm

STEERING HEAD ANGLE

63.9 °

WEIGHT (WITHOUT FUEL)

101.9 kg

TANK CAPACITY (APPROX.)

7.2 l

REAR BRAKE DISC DIAMETER

220 mm

SUSPENSION TRAVEL (REAR)

300 mm

FRONT BRAKE DISC DIAMETER

260 mm

SUSPENSION TRAVEL (FRONT)

310 mm

before the gate

Easy Suspension Adjustment

Get dialed in! The 2024 KTM SX range boasts totally tool-free suspension setup at both ends. Thanks to the shock absorber design featuring hand-adjustable dual compression control, it allows riders to adjust high- and low-speed settings in a matter of seconds. On the front end, the forks are also easily adjusted thanks to a single air pressure preload valve, as well as through easy access click adjusters for compression and rebound. We'll even throw the air pump in as standard.

Airbox

Designed to provide maximum airflow, the air filter box has precisely positioned inlet ducts aimed at preventing air deformation and maintaining filter protection. The Twin Air filter and air filter support design feature a simple fail-proof mounting system for secure and accurate filter installation, ensuring the air filter is easily accessed, without tools, by removing the left side panel, for easy track-side maintenance. A vented air filter box cover is also included for all SX and SX-F models in the by-pack.

Serviceability

The 2024 KTM SX and SX-F range is engineered and designed to provide riders with easy-to-access service parts, as well as suspension adjustability. This allows faster track-side and off-season maintenance, as well as making motocross more accessible for novice riders without pit crews.

start strong

More Usable Power

Perfectly filling the gap with the KTM 250 SX-F and the powerhouse KTM 450 SX-F, the lightweight KTM 350 SX-F powerplant weighs in at only 60.6 lb (27.5 kg), pumping out a hard-hitting power. This makes it the ultimate weapon when weighing up power to weight options.

Launch Control & Quickshifter

Launch control, ENGAGED! Designed for the holeshot, the 2024 KTM SX-F range comes standard with launch control and a Quickshifter function, allowing for fast upshifts without using the clutch. Launch control is easily engaged by pressing the traction control and Quickshifter buttons simultaneously and works by limiting the amount of power to the rear wheel, improving traction, and preventing loss of control under hard acceleration. Meanwhile, the Quickshifter function means you can bang through from 2nd to 5th gear with your focus solely on the first corner.

Selectable Maps + TC

The map select switch on the 2024 KTM SX models features a simpler design, allowing for easier functionality in switching between 2 engine maps. Map 1 provides a more linear power curve, while map 2 punches all-out with aggressive throttle and explosive power. Luckily, traction control is easy toggled to an on or off position from the same switch, ensuring maximum traction and a distinct advantage in wet or muddy conditions.

calm under fire

Absolute Control

No matter how gnarly the track is, you'll find complete confidence thanks to the frame design that has not only been engineered for longitudinal rigidity but also repositions rotating mass closer to the center of gravity. The shock mounting also provides improved anti-squat behavior for better traction out of corners, while the footpeg mounting position has moved inwards for less risk of hooking up in deep ruts or when scrubbing jumps.

Ergonomics

The rider triangle provides ample knee contact - especially when standing on the pegs - to ensure enough gripping surfaces all around. The plastics work to expel mud buildup in wet, muddy conditions, with a flat seat profile and high grip seat cover providing exceptional rider movement and control. The polyamide reinforced aluminum subframe further enhances rider feel and feedback.

Performance

The KTM 350 SX-F engine position greatly improves mass centralization and reduces overall weight, benefiting handling and anti-squat behavior.

hit the big stuff

Mass Centralization

Ready to rip your arms out of the sockets? Together with the benefits of mass centralization and overall reduced weight, the anti-squat behavior of the chassis is significantly improved by changing the backbone of the steel frame concept. In layman's terms, the 2024 KTM 350 SX-F gets its power down perfectly when tearing out of corners.

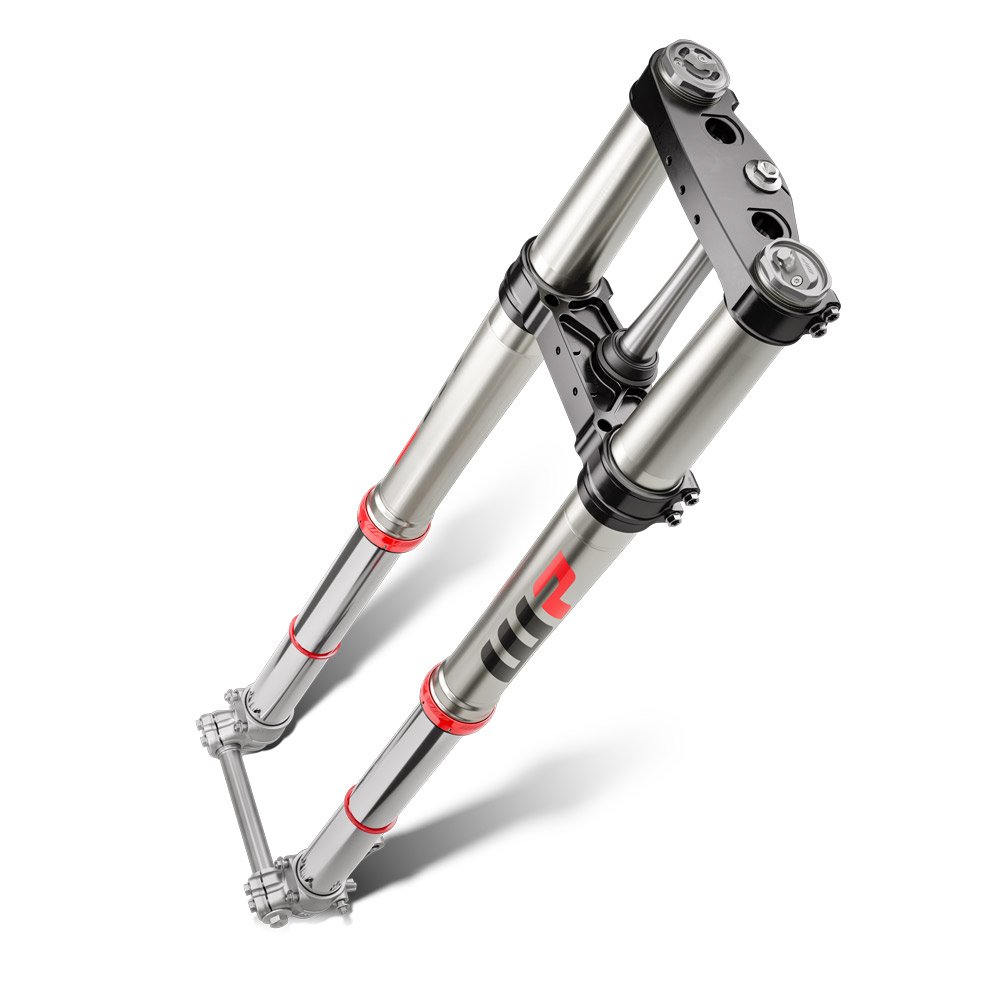

WP XACT Fork

48mm air type WP XACT front fork with a split damping function provides all the confidence you need to attack the track. Hydrostops in the fork legs improves bottoming-out resistance and account for less rebound when attacking big jumps, bumps, and thumps. Redesigned fork protection rings also increase protection against dirt, making them as reliable as they are awesome.

Stability

The KTM 350 SX-F is rock-solid at any speed thanks to the position of the forged steering head connection and CNC milled triple clamps. Made from high-grade aluminum, these feature optimally tuned steering stem stiffness, perfect alignment of the fork tubes, and precise geometry of the fork clamps to ensure highly responsive and smooth fork action - not to mention unwavering stability when charging across ruts and onto the podium.

maintaining momentum

Energy absorption

Besides the expertly crafted, hydro-formed, laser-cut, and robot-welded frame being engineered to provide exceptional rider feedback and straight-line stability, it consists of specifically calculated parameters of longitudinal and torsional flex. This means the frame acts as a "shock absorber" of sorts, making for a less harsh ride, resulting in less rider fatigue over many hard laps.

Ground clearance

No one enjoys a bad hook-up. Luckily, the frame and shock absorber geometry on the 2024 KTM 350 SX-F improves ground clearance of the linkage, with topology optimized die-cast footpegs that are less susceptible to hooking on deep ruts, and take-offs when scrubbing.

Consistency

A WP XACT shock absorber provides unmatched consistency lap after lap, thanks to low-friction SKF linkage seals and advanced damping characteristics for unsurpassed traction and energy absorption.
